AMPERA

Improved road safety thanks to this efficient and cost-effective outdoor lighting solution

Description

Designing the most efficient and cost-effective LED lighting was the driving force behind the development of the AMPERA.
With its long lifespan, easy installation, limited maintenance requirements and highly efficient photometric engines, the AMPERA road lighting solution enables you to maximise your return on investment.
AMPERA improves safety for drivers and meets all your road and urban lighting needs, from roads and motorways to bridges and large areas.
AMPERA sets a new benchmark in outdoor LED lighting with performing and flexible solution that lead to the shortest payback time while being connected-ready for your future Smart City requirements.

  • Connected-ready
  • AMPERA offers not just one but two connectivity options based on industry standards. To remain as open and interoperable as possible, AMPERA is available with NEMA or Zhaga sockets and complies with the ZD4i standard.

  • Optimised return on investment
  • Setting a new benchmark in LED lighting, this cost-effective and efficient lighting solution offers a fast return on investment.
    Equipped with the latest Schréder photometric technology, AMPERA is the perfect alternative to replace luminaires fitted with HID lamps and offers an unrivalled payback time.

  • Effortless installation and maintenance
  • Thanks to its design with two separate parts, AMPERA ensures an easy and fast installation. Fixed on a pole with a universal mounting piece, the inclination angle - in the lower part - can be adjusted before installing the upper part which incorporates the gear and optical unit.
    The access to the internal components is tool-free, facilitating maintenance operations.

  • Sustainable and circular for future generations
  • Sustainability focuses on fulfilling the needs of the present without compromising the ability of future generations to meet their own needs. AMPERA supports this philosophy with its reduced energy consumption and its long life span.
    This street luminaire integrates the FutureProof concept, which enables an easy replacement of the photometric engine and gear compartment, in line with circular economy principles.

Create safer environments

Local authorities care for their citizens by providing infrastructure that ensures safety and well-being. This outdoor LED luminaire creates environments where people feel safe.
Offering state-of-the-art photometric technology, with advanced control options, AMPERA delivers highly efficient lighting that precisely meets the unique requirements of each lighting project and complies with local regulations.
AMPERA enhances road safety, making your city a more attractive place to live and to visit.

Also suitable for hotter climate

The AMPERA was developed to integrate the ThermiX® concept developed by Schréder to provide a road and urban lighting solution that can withstand high temperatures (Ta 50°C/122°F), making it the ideal choice in countries with a hot climate.

Get your starlit sky back

The International Dark-Sky Association (IDA) is the recognised authority on light pollution. It provides tools, ressources, and a certification program for industries and companies willing to reduce light pollution. At Schréder, we are convinced that a more responsible lighting has the potential to preserve the environment. We are fully committed to reducing light pollution by joining the IDA’s certification program. Our approved range of luminaires complies with the IDA’s program of approval to deliver a light that protects the environment in all respects. Get your starlit sky back with the AMPERA lighting solution.

Characteristics

Recommanded installation height (m)
10.0 -
12.0
Electrical class
Nominal voltage
Surge protection (kV)
10
Control protocol(s)
Associated control system(s)
Sensor(s)
Luminaire output flux (lm)
6600 -
46900
Power consumption (W)
57.0 -
346.0
Luminaire efficacy - up to (lm/W)
183
Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult us.
ULR may be different according to the configuration. Please consult us.
Meets IDA Dark Sky requirements when fitted with LEDs of 3000K or less.
Housing
Aluminium
Optic
Protector
Tempered glass
Tightness level
Impact resistance
All configurations
Lifetime may be different according to the size/configurations. Please consult us.
Operating temperature range (Ta)
-40 °C to +55 °C / -40 ° F to 131 °F
Depending on the luminaire configuration. For more details, please contact us.

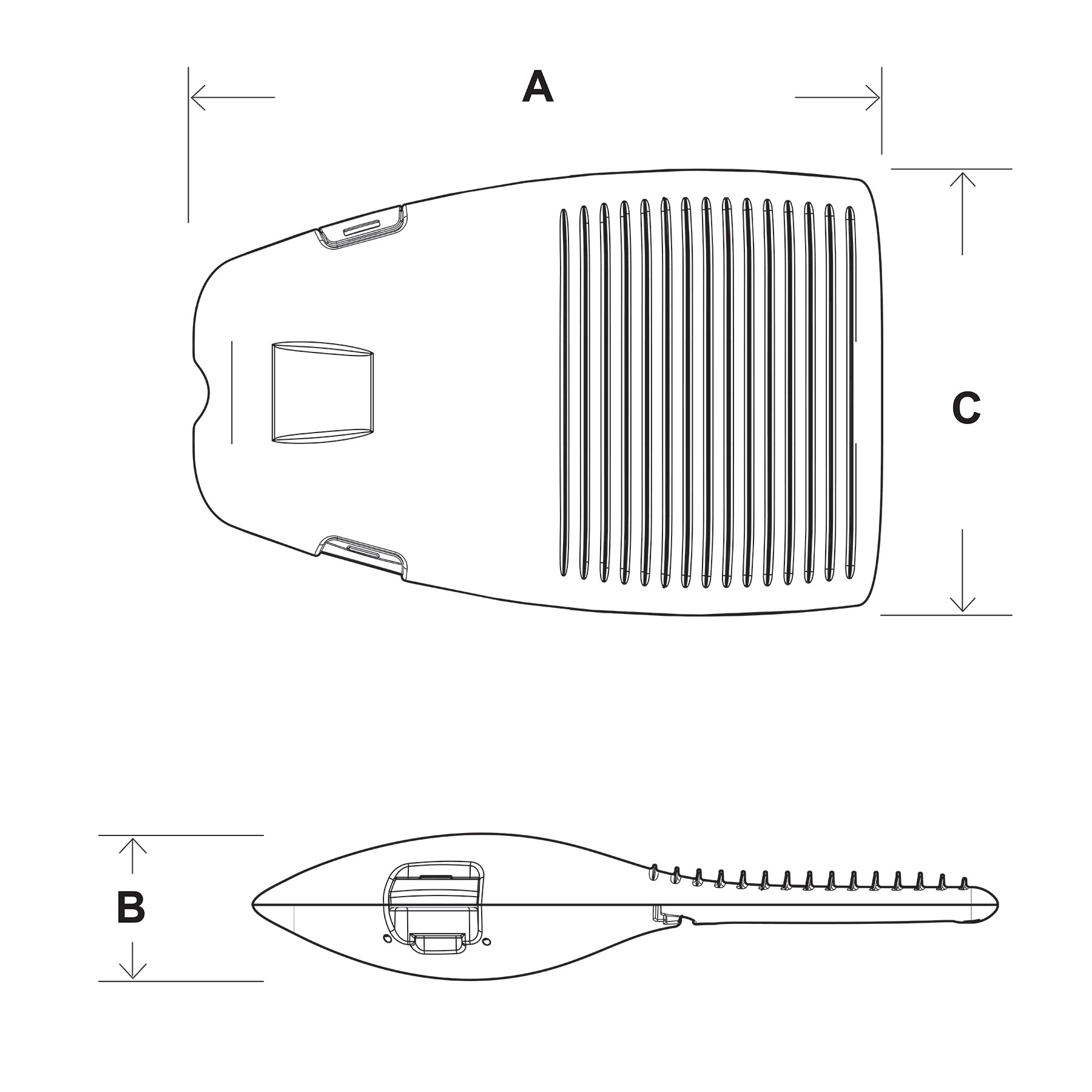

Dimensions and mounting

AxBxC (mm | inch)
900x135x438 | 35.4x5.3x17.2
Weight (kg | lbs)
18.2 | 40.0
Mounting possibilities
Post-top slip-over – Ø60mm
Side-entry slip-over – Ø48mm
Side-entry slip-over – Ø42mm
Post-top slip-over – Ø76mm
Side-entry slip-over – Ø76mm
Post-top slip-over – Ø48mm
Side-entry slip-over – Ø60mm
Post-top slip-over – Ø42mm

Video file

Maximise your solution with Schréder EXEDRA

Enhance your lighting infrastructure with Schréder EXEDRA, the ultimate luminaire control solution. This cutting-edge technology enables cities and utilities to maximise energy savings, optimise operations and maintenance, and decarbonise streets. Future-proof your urban landscape and harness the potential of smart streets. With Schréder EXEDRA, you're not just upgrading your lighting - you're investing in a brighter and more sustainable future for your community.

Control systems

Control options for AMPERA

The following dimming options are possible for the AMPERA outdoor LED luminaires:
• Custom dimming profile
• 1 - 10V
• DALI
• AMPDIM
• Remote management by 1-10V or DALI
• Bi-Power

As an option, the AMPERA street luminaire can be equipped with a 7-pin NEMA socket or a Zhaga socket to be connected-ready for your future Smart City requirements.
This creates opportunities for improved efficiency and enables you to receive accurate real-time data, allowing you to plan, monitor and control outdoor lighting networks.

Control link

Create the perfect harmony with our poles and brackets

Our diverse selection ensures the perfect match for Schréder luminaires, enabling you to tailor your ensemble to the unique needs of your project. From sleek modern designs to classic styles, our poles and brackets offer a wide range of options. Choose Schréder for a harmonious blend of form and function, creating lighting solutions that stand out and enhance any urban landscape.

Check your options

Installation and Maintenance

Standard mounting

AMPERA is available with three different universal fixation parts adapted for post-top and side-entry mountings on various spigot diameters (Ø42- 48mm, Ø60mm and Ø76mm). The inclination angle can be adjusted on-site by 15° for both post-top and side-entry configurations.

Poles and Brackets

ANDO bracket

Combine the AMPERA with the elegant ANDO bracket to create another very aesthetic ensemble for your lighting points. The ANDO bracket with the AMPERA offers a modern design to create a strong nocturnal identity for urban environments.
