ZYLINDO

Timeless urban lighting solution integrating the latest LED technology

Description

Create inviting and safe urban environments in which people feel great!
With its timeless aesthetic design, ZYLINDO blends into all kinds of urban environments, such as squares and pedestrian areas, car parks, bike paths, bridges, railway stations and urban roads and streets.
Thanks to its state-of-the-art LED technology, this lighting solution is ideal for creating ambiance while lowering the energy consumption of your town or city. With a very high degree of impact resistance and a high tightness level, this luminaire is built to withstand harsh environmental conditions and to perform for many years to come.
The ZYLINDO luminaire help save time as they are supplied pre-wired to facilitate installation and offer tool free access for maintenance.
This highly efficient decorative urban light post is also connected-ready for your future Smart City requirements.

  • Enhance cities with this classical design
  • The elegant and classical design of ZYLINDO improves urban areas like squares and pedestrian areas, bike paths, bridges, railway stations or urban roads and streets.
    It creates welcoming and beautiful environments. Available in two versions, with a smooth cylinder or with a large canopy, the ZYLINDO outdoor LED lighting solution contributes to the enhancement and the identity of your town or city.

  • Save time on installation and maintenance
  • Save time on installation and maintenance thanks to ZYLINDO! For a simple and fast installation, ZYLINDO is delivered pre-wired.
    Luminaire maintenance has never been easier thanks to a tool free access to the photometric engine - simply pinch two stainless steel spring locks.

  • Energy efficiency
  • In recent years, thanks to the high-energy efficiency of LEDs, many private and public organisations have upgraded their lighting networks and abandoned luminaires fitted with traditional HID lamps.
    ZYLINDO combines the energy efficiency of LED technology with the photometric performance of the LensoFlex®2 engine developed by Schréder, providing symmetrical and asymmetrical light distributions.

  • Help people find their way in urban environments
  • At night, a lack of proper lighting can lead to disorientation and a feeling of insecurity for pedestrians, cyclists and drivers.
    ZYLINDO offers a superior quality of light and improves visual comfort thanks to the optional diffusor, which guides people in urban environments and creates more inviting and safer places.

ZYLINDO has been designed to provide an efficient and sustainable lighting for various urban applications.
Resists severe environmental conditions

The 360° protector is made of UV-stabilised polycarbonate. It hosts the photometric engine and two oval rods in resistant extruded aluminium, connecting the bottom to the top of the luminaire.
ZYLINDO can withstand harsh environmental conditions and even vandalism as it offers a high tightness level and a very high degree of impact resistance.

The aesthetic design of the ZYLINDO urban lighting solution is ideal for squares and pedestrian areas, car parks or urban roads and streets.
A Zhaga-D4i certified luminaire

As a founding member of the Zhaga consortium, Schréder has participated in the creation of Zhaga-D4i certification program and the initiative of this group to standardize an interoperable ecosystem. The D4i specifications take the best of the standard DALI2 protocol and adapt it to an intra-luminaire environment.
As Zhaga-D4i certified luminaire, ZYLINDO complies with all the criteria including mechanical fit, digital communication, data reporting and power requirements within a single luminaire, ensuring plug-and-play interoperability of luminaires and peripherals such as connectivity nodes.

Characteristics

Recommanded installation height (m)
3.0 -
6.0
Electrical class
Nominal voltage
Surge protection (kV)
10
8
6
Control protocol(s)
Associated control system(s)
Sensor(s)
Luminaire output flux (lm)
500 -
6200
Power consumption (W)
9.8 -
53.5
Luminaire efficacy - up to (lm/W)
132
Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
<4%
ULR
<6%
Housing
Aluminium
Optic
Protector
Polycarbonate
Tightness level
Impact resistance
All configurations
Operating temperature range (Ta)
-30°C up to +55°C / -22° F up to 131°F
Depending on the luminaire configuration. For more details, please contact us.

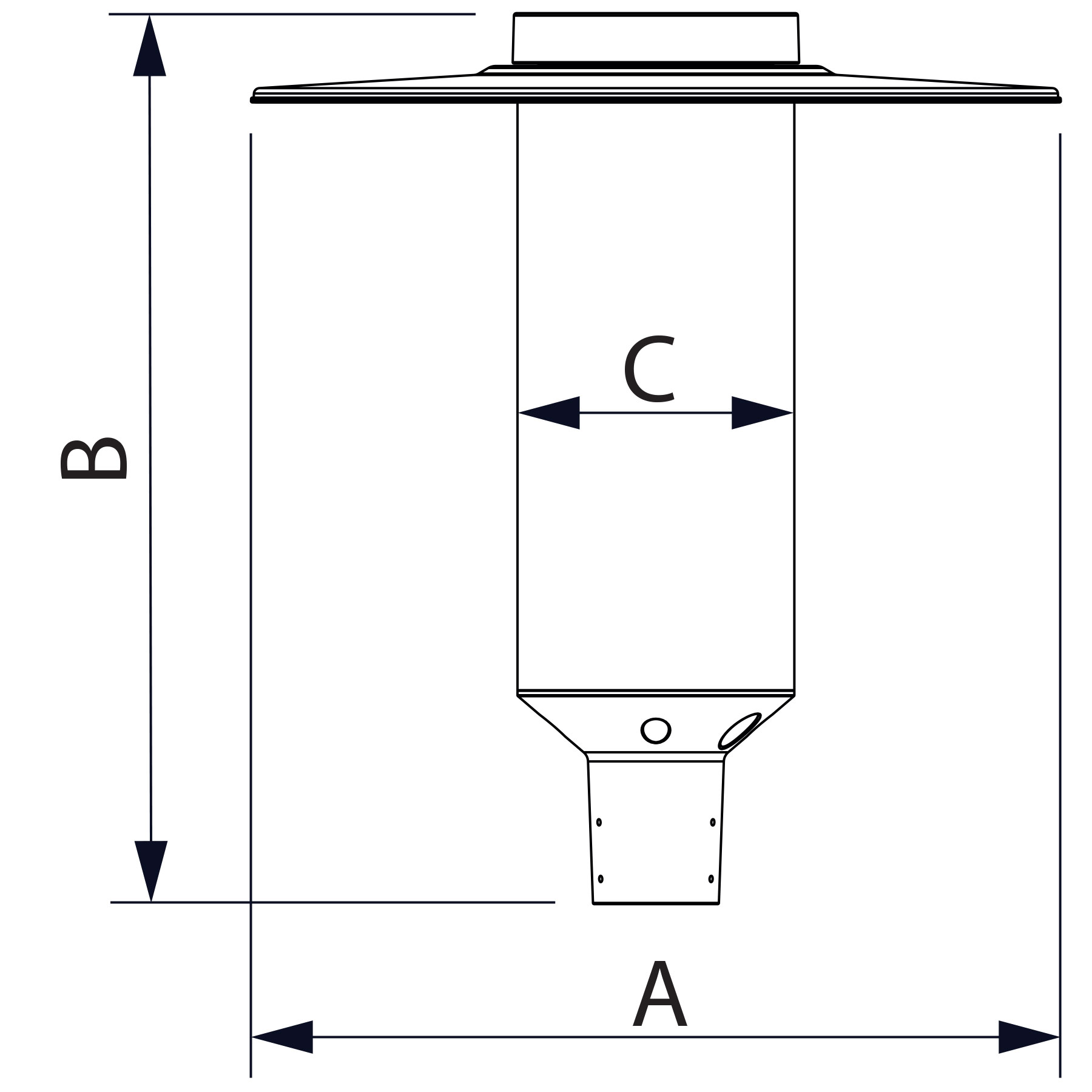

Dimensions and mounting

AxBxC (mm | inch)
220x708x644 | 8.7x27.9x25.4
Weight (kg | lbs)
9.2 | 20.2
Mounting possibilities
Post-top slip-over – Ø60mm
Post-top slip-over – Ø76mm

Control systems

Control options of ZYLINDO

The ZYLINDO luminaire has the following dimming/control options:
· Bi-Power
· Custom dimming profile
· DALI
· 1-10V
· AmpDim
· Remote management

As an option, this luminaire can be equipped with standard 7-pins NEMA or Zhaga sockets, enabling easy access to the digital era of lighting with advanced lighting features that plan, monitor and control outdoor lighting networks.

Control link

Installation and Maintenance

Tool free access

ZYLINDO is delivered pre-wired for mounting on a Ø60mm (with an accessory) or Ø76mm spigot.
Offering tool free access for maintenance, the photometric engine of Zylindo is fixed on an extruded aluminium heatsink that can be accessed by pinching two stainless steel spring locks.
A reusable extruded gasket ensures that the luminaire can be closed in a safe and easy manner after maintenance and guarantees a high tightness level.
Multipole disconnectors enable the gear tray to be easily removed, without any tools, after opening the top cap and pulling out the photometric engine. This design supports circular economy principles as it offers the possibility to extend the service life.

Poles and Brackets

Columns

ZYLINDO is a decorative urban post-top luminaire, designed to be installed on columns ranging from 3m to 6m in height, depending on the application.
